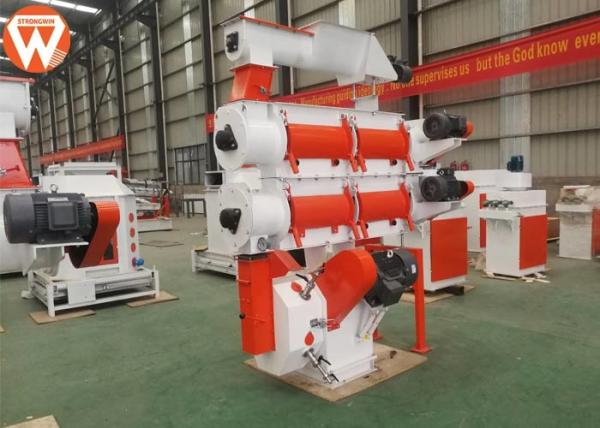

With Double Layer Conditioner Pig Cow Chicken Feed Pellet Machine
Brief Introduction of Pig Cow Chicken Feed Pellet Machine
Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Adopt international advanced piping system and import pressure regulating valve.
With full stainless steel door, flume, and pull cutter which is convenient, reliable
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.
For high quality livestock and poultry, aquatic products and other materials in feed pelleting.
Features of Pig Cow Chicken Feed Pellet Machine
1. Belt Transmission type szlh250 feed pellet machine
2. Die roller fixed with stainless steel knife pelletizing device
3. This pellet mill die roller is suitable for making high quality livestock and poultry, pig,
dog, chicken feeds and other materials in feed pelleting.
Advantage of Pig Cow Chicken Feed Pellet Machine
1.SIEMENS Motor
2.SKF Bearing
3.Frequency conversion feeding motor
3.Plate is 2mm thicker than the common, durable to use
Technical Parameter of Pig Cow Chicken Feed Pellet Machine
| Items | SZLH250 |
| Production Capacity | 1-2t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
